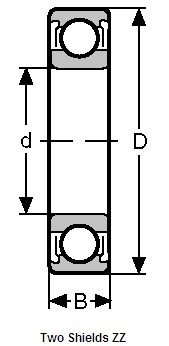

| Unflanged miniature bearing R168ZZ |
|

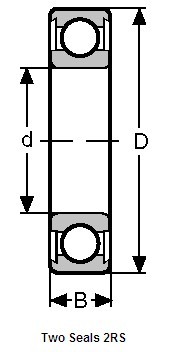

Unflanged miniature bearing R168-2RS |
|

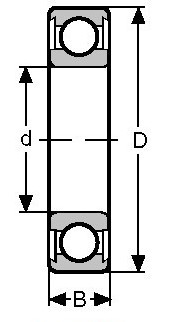

Unflanged miniature bearing R168-2TS |
| Availbale Material: |
Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 |
|
Availbale Material: |
Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 |
|
Availbale Material: |
Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 |
| Specifictaions |
|
Specifictaions |
|
Specifictaions |
| Structure: |
Deep Groove Miniature Ball Bearing |
|
Structure: |
Deep Groove Miniature Ball Bearing |
|
Structure: |
Deep Groove Miniature Ball Bearing |
| Bearing type: |
Metric Miniature Bearing with metal shield |
|
Bearing type: |
Metric Miniature Bearing with metal shield |
|
Bearing type: |
Metric Miniature Bearing with metal shield |
| Material for this item: |
Chrome steel 52100 (GCr15) |
|
Material for this item: |
Chrome steel 52100 (GCr15) |
|
Material for this item: |
Chrome steel 52100 (GCr15) |
| Model Number: |
R168ZZ 1/4"X3/8"X1/8" |
|
Model Number: |
R168-2RS 1/4"X3/8"X1/8" |
|
Model Number: |
R168-2TS 1/4"X3/8"X1/8" |
| 6.350X9.525X3.175mm |
|
6.350X9.525X3.175mm |
|
6.350X9.525X3.175mm |
| Bore Diameter(d): |
6.350 mm |
|
Bore Diameter(d): |
6.350 mm |
|
Bore Diameter(d): |
6.350 mm |
| Outer Diameter(D): |
9.525 mm |
|
Outer Diameter(D): |
9.525 mm |
|
Outer Diameter(D): |
9.525 mm |
| Width(B): |
3.175 mm |
|
Width(B): |
3.175 mm |
|
Width(B): |
3.175 mm |
| Min.Raius(rs): |
0.10mm (0.0039") |
|
Min.Raius(rs): |
0.10mm (0.0039") |
|
Min.Raius(rs): |
0.10mm (0.0039") |
| Available Precision Rating: |
ABEC-1,ABEC-3,ABEC-5,ABEC-7 |
|
Available Precision Rating: |
ABEC-1,ABEC-3,ABEC-5,ABEC-7 |
|
Available Precision Rating: |
ABEC-1,ABEC-3,ABEC-5,ABEC-7 |
| Available Shield/Seal: |
SPCC or 1Cr18Ni9 |
|
Available Shield/Seal: |
SPCC or 1Cr18Ni9 |
|
Available Shield/Seal: |
SPCC or 1Cr18Ni9 |
| Available Shields Type: |
Rubber seal (Black,Blue,Yellow,Red and various color) |
|
Available Shields Type: |
Rubber seal (Black,Blue,Yellow,Red and various color) |
|
Available Shields Type: |
Rubber seal (Black,Blue,Yellow,Red and various color) |
| Number of Row: |
Single Row |
|
Number of Row: |
Single Row |
|
Number of Row: |
Single Row |
| Lubrication Type: |
Grease, Oil, Dry |
|
Lubrication Type: |
Grease, Oil, Dry |
|
Lubrication Type: |
Grease, Oil, Dry |
| Grease Lubrication: |
Kyodo Yushi Multemp SRL |
|
Grease Lubrication: |
Kyodo Yushi Multemp SRL |
|
Grease Lubrication: |
Kyodo Yushi Multemp SRL |
| Oil Lubrication: |
Shell Air Oil#12 |
|
Oil Lubrication: |
Shell Air Oil#12 |
|
Oil Lubrication: |
Shell Air Oil#12 |
| Vibration Level Codes: |
V4,V3,V2,V1 |
|
Vibration Level Codes: |
V4,V3,V2,V1 |
|
Vibration Level Codes: |
V4,V3,V2,V1 |
| Radial Play: |
CN,C2,C3,C4,C5 |
|
Radial Play: |
CN,C2,C3,C4,C5 |
|
Radial Play: |
CN,C2,C3,C4,C5 |
| Related Bearing Part Number: |
SR168ZZ,FR168ZZ,R168ZZ/C |
|
Related Bearing Part Number: |
SR168-2RS,FR168-2RS,R168-2RS/C |
|
Related Bearing Part Number: |
SR168-2TS,FR168-2TS,R168-2TS/C |
| Interchange Item No.: |
R168ZZ,R168ZZS,WOB87ZZX, RI-614ZZ,RA168ZZA |
|
Interchange Item No.: |
|
|
Interchange Item No.: |
|
| Bearing Other Calling: |
miniature Ball Bearing |
|
Bearing Other Calling: |
miniature Ball Bearing |
|
Bearing Other Calling: |
miniature Ball Bearing |
| mini rodamientos |
|
mini rodamientos |
|
mini rodamientos |
| miniatuur lager |
|
miniatuur lager |
|
miniatuur lager |
| rolamento em miniatura |
|
rolamento em miniatura |
|
rolamento em miniatura |
| Miniaturkugellager |
|
Miniaturkugellager |
|
Miniaturkugellager |
| Miniature Laakerit |
|
Miniature Laakerit |
|
Miniature Laakerit |
| Roulement a billes miniatures |
|
Roulement a billes miniatures |
|
Roulement a billes miniatures |
| Chrome Miniatur Bantalan |
|
Chrome Miniatur Bantalan |
|
Chrome Miniatur Bantalan |
| miniatuur Bearings |
|
miniatuur Bearings |
|
miniatuur Bearings |
| Miniature Bearing |
|
Miniature Bearing |
|
Miniature Bearing |
| micro-cuscinetto |
|
micro-cuscinetto |
|
micro-cuscinetto |
| Miniaturkugellager |
|
Miniaturkugellager |
|
Miniaturkugellager |
| miniature Lejer |
|
miniature Lejer |
|
miniature Lejer |
| Miniature Rulmanlar |
|
Miniature Rulmanlar |
|
Miniature Rulmanlar |
| pinaliit Bearings |
|
pinaliit Bearings |
|
pinaliit Bearings |
