| Flanged Miniature Bearing MF41XZZ |
| Availbale Material: |
Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 |
| Specifictaions |
| Structure: |
Deep Groove Miniature Ball Bearing |
| Bearing type: |
Metric Miniature Bearing with metal shield |
| Material for this item: |
Chrome steel 52100 (GCr15) |
| Model Number: |
MF41XZZ 1.2X4X2.5mm |

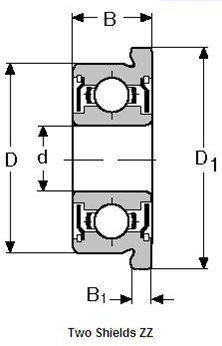

| Bore Diameter(d): |
1.20 mm |
| Outer Diameter(D): |
4.00 mm |
| Width(B): |
2.50 mm |
| Flange diameter (Df): |
4.80mm |
| Flange width (Bf): |
0.40mm |
| Min.Raius(rs): |
|
| Available Precision Rating: |
ABEC-1,ABEC-3,ABEC-5,ABEC-7 |
| Available Shield/Seal: |
SPCC or 1Cr18Ni9 |
| Available Shields Type: |
Rubber seal (Black,Blue,Yellow,Red and various color) |
| Number of Row: |
Single Row |
| Lubrication Type: |
Grease, Oil, Dry |
| Grease Lubrication: |
Kyodo Yushi Multemp SRL |
| Oil Lubrication: |
Shell Air Oil#12 |
| Vibration Level Codes: |
V4,V3,V2,V1 |
| Radial Play: |
CN,C2,C3,C4,C5 |
| Related Bearing Part Number: |
SMF41XZZ,MR41XZZ,MF41XZZ/C |
| Bearing Other Calling: |
Brides de roulement miniature |
| Rolamentos na miniatura |
| Flansch Miniaturlager |
| Laipallinen Miniature Laakeri |
| Flens Miniatur Bantalan |
| Geflens miniatuur Bearing |
| Flangia del cuscinetto in miniatura |
| Flanged pinaliit na tindig |
| Teniendo en miniatura con bridas |
