| Unflanged miniature bearing R1-4ZZ |
| Availbale Material: |
Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 |
| Specifictaions |
| Structure: |
Deep Groove Miniature Ball Bearing |
| Bearing type: |
Metric Miniature Bearing with metal shield |
| Material for this item: |
Chrome steel 52100 (GCr15) |
| Model Number: |
R1-4ZZ 5/64"X1/4"X9/64" |
| 1.984X6.350X3.571mm |

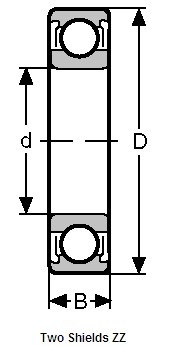

| Bore Diameter(d): |
1.984 mm |
| Outer Diameter(D): |
6.350mm |
| Width(B): |
3.571 mm |
| Min.Raius(rs): |
0.10mm |
| Available Precision Rating: |
ABEC-1,ABEC-3,ABEC-5,ABEC-7 |
| Available Shield/Seal: |
SPCC or 1Cr18Ni9 |
| Available Shields Type: |
Rubber seal (Black,Blue,Yellow,Red and various color) |
| Number of Row: |
Single Row |
| Lubrication Type: |
Grease, Oil, Dry |
| Grease Lubrication: |
Kyodo Yushi Multemp SRL |
| Oil Lubrication: |
Shell Air Oil#12 |
| Vibration Level Codes: |
V4,V3,V2,V1 |
| Radial Play: |
CN,C2,C3,C4,C5 |
| Related Bearing Part Number: |
SR1-4ZZ,FR1-4ZZ,R1-4ZZ/C |
