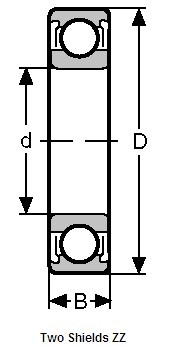

| Unflanged miniature bearing 638ZZ |
|

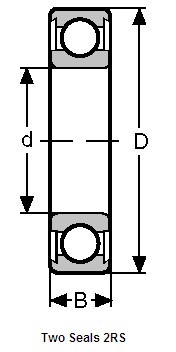

Unflanged miniature bearing 638-2RS |
|

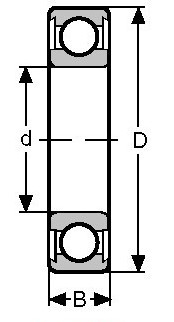

Unflanged miniature bearing 638-2TS |
| Availbale Material: |
Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 |
|
Availbale Material: |
Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 |
|
Availbale Material: |
Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 |
| Specifictaions |
|
Specifictaions |
|
Specifictaions |
| Structure: |
Deep Groove Miniature Ball Bearing |
|
Structure: |
Deep Groove Miniature Ball Bearing |
|
Structure: |
Deep Groove Miniature Ball Bearing |
| Bearing type: |
Metric Miniature Bearing with metal shield |
|
Bearing type: |
Metric Miniature Bearing with metal shield |
|
Bearing type: |
Metric Miniature Bearing with metal shield |
| Material for this item: |
Chrome steel 52100 (GCr15) |
|
Material for this item: |
Chrome steel 52100 (GCr15) |
|
Material for this item: |
Chrome steel 52100 (GCr15) |
| Model Number: |
638ZZ 8X28X9MM |
|
Model Number: |
638-2RS 8X28X9MM |
|
Model Number: |
638-2TS 8X28X9MM |
| Bore Diameter(d): |
8.00 mm |
|
Bore Diameter(d): |
8.00 mm |
|
Bore Diameter(d): |
8.00 mm |
| Outer Diameter(D): |
28.00 mm |
|
Outer Diameter(D): |
28.00 mm |
|
Outer Diameter(D): |
28.00 mm |
| Width(B): |
9.00 mm |
|
Width(B): |
9.00 mm |
|
Width(B): |
9.00 mm |
| Min.Raius(rs): |
0.30mm |
|
Min.Raius(rs): |
0.30mm |
|
Min.Raius(rs): |
0.30mm |
| Available Precision Rating: |
ABEC-1,ABEC-3,ABEC-5,ABEC-7 |
|
Available Precision Rating: |
ABEC-1,ABEC-3,ABEC-5,ABEC-7 |
|
Available Precision Rating: |
ABEC-1,ABEC-3,ABEC-5,ABEC-7 |
| Available Shield/Seal: |
SPCC or 1Cr18Ni9 |
|
Available Shield/Seal: |
SPCC or 1Cr18Ni9 |
|
Available Shield/Seal: |
SPCC or 1Cr18Ni9 |
| Available Shields Type: |
Pressed steel shield or shield with snap ring |
|
Available Shields Type: |
Pressed steel shield or shield with snap ring |
|
Available Shields Type: |
Pressed steel shield or shield with snap ring |
| Number of Row: |
Single Row |
|
Number of Row: |
Single Row |
|
Number of Row: |
Single Row |
| Lubrication Type: |
Grease, Oil, Dry |
|
Lubrication Type: |
Grease, Oil, Dry |
|
Lubrication Type: |
Grease, Oil, Dry |
| Grease Lubrication: |
Kyodo Yushi Multemp SRL |
|
Grease Lubrication: |
Kyodo Yushi Multemp SRL |
|
Grease Lubrication: |
Kyodo Yushi Multemp SRL |
| Oil Lubrication: |
Shell Air Oil#12 |
|
Oil Lubrication: |
Shell Air Oil#12 |
|
Oil Lubrication: |
Shell Air Oil#12 |
| Vibration Level Codes: |
V4,V3,V2,V1 |
|
Vibration Level Codes: |
V4,V3,V2,V1 |
|
Vibration Level Codes: |
V4,V3,V2,V1 |
| Radial Play: |
CN,C2,C3,C4,C5 |
|
Radial Play: |
CN,C2,C3,C4,C5 |
|
Radial Play: |
CN,C2,C3,C4,C5 |
| Related Bearing Part Number: |
S638ZZ,F638ZZ,638ZZ/C |
|
Related Bearing Part Number: |
S638-2RS,F638-2RS,638-2RS/C |
|
Related Bearing Part Number: |
S638-2TS,F638-2TS,638-2TS/C |
| Bearing Other Calling: |
miniature Ball Bearing |
|
Bearing Other Calling: |
miniature Ball Bearing |
|
Bearing Other Calling: |
miniature Ball Bearing |
