MR82XZZ/MR82X-2RS/MR82X-2TS
Ref: PROFESSION MICRO BEARING MFG | editor: admin
 |
 |
 |
 |
 |
 |

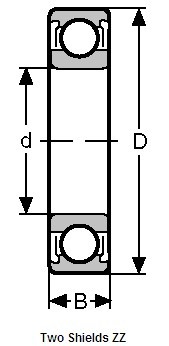

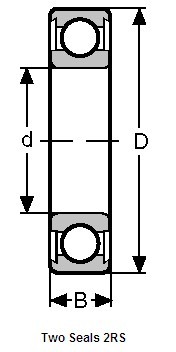

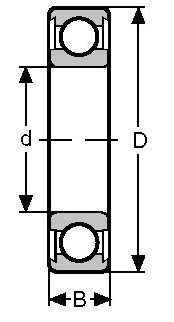

| Unflanged miniature bearing MR82XZZ | Unflanged miniature bearing MR82X-2RS | Unflanged miniature bearing MR82X-2TS | |||||
| Availbale Material: | Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 | Availbale Material: | Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 | Availbale Material: | Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 | ||
| Specifictaions | Specifictaions | Specifictaions | |||||
| Structure: | Deep Groove Miniature Ball Bearing | Structure: | Deep Groove Miniature Ball Bearing | Structure: | Deep Groove Miniature Ball Bearing | ||
| Bearing type: | Metric Miniature Bearing with metal shield | Bearing type: | Metric Miniature Bearing with metal shield | Bearing type: | Metric Miniature Bearing with metal shield | ||
| Material for this item: | Chrome steel 52100 (GCr15) | Material for this item: | Chrome steel 52100 (GCr15) | Material for this item: | Chrome steel 52100 (GCr15) | ||
| Model Number: | MR82XZZ 2.5X8X3MM | Model Number: | MR82X-2RS 2.5X8X3MM | Model Number: | MR82X-2TS 2.5X8X3MM | ||
| Bore Diameter(d): | 2.50 mm | Bore Diameter(d): | 2.50 mm | Bore Diameter(d): | 2.50 mm | ||
| Outer Diameter(D): | 8.00 mm | Outer Diameter(D): | 8.00 mm | Outer Diameter(D): | 8.00 mm | ||
| Width(B): | 3.00 mm | Width(B): | 3.00 mm | Width(B): | 3.00 mm | ||
| Min.Raius(rs): | Min.Raius(rs): | Min.Raius(rs): | |||||
| Available Precision Rating: | ABEC-1,ABEC-3,ABEC-5,ABEC-7 | Available Precision Rating: | ABEC-1,ABEC-3,ABEC-5,ABEC-7 | Available Precision Rating: | ABEC-1,ABEC-3,ABEC-5,ABEC-7 | ||
| Available Shield/Seal: | SPCC or 1Cr18Ni9 | Available Shield/Seal: | SPCC or 1Cr18Ni9 | Available Shield/Seal: | SPCC or 1Cr18Ni9 | ||
| Available Shields Type: | Pressed steel shield or shield with snap ring | Available Shields Type: | Pressed steel shield or shield with snap ring | Available Shields Type: | Pressed steel shield or shield with snap ring | ||
| Number of Row: | Single Row | Number of Row: | Single Row | Number of Row: | Single Row | ||
| Lubrication Type: | Grease, Oil, Dry | Lubrication Type: | Grease, Oil, Dry | Lubrication Type: | Grease, Oil, Dry | ||
| Grease Lubrication: | Kyodo Yushi Multemp SRL | Grease Lubrication: | Kyodo Yushi Multemp SRL | Grease Lubrication: | Kyodo Yushi Multemp SRL | ||
| Oil Lubrication: | Shell Air Oil#12 | Oil Lubrication: | Shell Air Oil#12 | Oil Lubrication: | Shell Air Oil#12 | ||
| Vibration Level Codes: | V4,V3,V2,V1 | Vibration Level Codes: | V4,V3,V2,V1 | Vibration Level Codes: | V4,V3,V2,V1 | ||
| Radial Play: | CN,C2,C3,C4,C5 | Radial Play: | CN,C2,C3,C4,C5 | Radial Play: | CN,C2,C3,C4,C5 | ||
| Related Bearing Part Number: | SMR82XZZ,MF82XZZ,MR82XZZ/C | Related Bearing Part Number: | SMR82X-2RS,MF82X-2RS,MR82X-2RS/C | Related Bearing Part Number: | SMR82X-2TS,MF82X-2TS,MR82X-2TS/C | ||
| Bearing Other Calling: | miniature Ball Bearing | Bearing Other Calling: | miniature Ball Bearing | Bearing Other Calling: | miniature Ball Bearing | ||
| mini rodamientos | mini rodamientos | mini rodamientos | |||||
| miniatuur lager | miniatuur lager | miniatuur lager | |||||
| rolamento em miniatura | rolamento em miniatura | rolamento em miniatura | |||||
| Miniaturkugellager | Miniaturkugellager | Miniaturkugellager | |||||
| Miniature Laakerit | Miniature Laakerit | Miniature Laakerit | |||||
| Roulement a billes miniatures | Roulement a billes miniatures | Roulement a billes miniatures | |||||
| Chrome Miniatur Bantalan | Chrome Miniatur Bantalan | Chrome Miniatur Bantalan | |||||
| miniatuur Bearings | miniatuur Bearings | miniatuur Bearings | |||||
| Miniature Bearing | Miniature Bearing | Miniature Bearing | |||||
| micro-cuscinetto | micro-cuscinetto | micro-cuscinetto | |||||
| Miniaturkugellager | Miniaturkugellager | Miniaturkugellager | |||||
| miniature Lejer | miniature Lejer | miniature Lejer | |||||
| Miniature Rulmanlar | Miniature Rulmanlar | Miniature Rulmanlar | |||||
| pinaliit Bearings | pinaliit Bearings | pinaliit Bearings | |||||
