MR72ZZ/MR72-2RS/MR72-2TS
Ref: PROFESSION MICRO BEARING MFG | editor: admin
 |
 |
 |
 |
 |
 |
| Unflanged miniature bearing MR72ZZ | Unflanged miniature bearing MR72-2RS | Unflanged miniature bearing MR72-2TS | |||||
| Availbale Material: | Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 | Availbale Material: | Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 | Availbale Material: | Stainless Steel AISI440 (9Cr18),Ceramic and steel GCr15 | ||
| Specifictaions | Specifictaions | Specifictaions | |||||
| Structure: | Deep Groove Miniature Ball Bearing | Structure: | Deep Groove Miniature Ball Bearing | Structure: | Deep Groove Miniature Ball Bearing | ||
| Bearing type: | Metric Miniature Bearing with metal shield | Bearing type: | Metric Miniature Bearing with metal shield | Bearing type: | Metric Miniature Bearing with metal shield | ||
| Material for this item: | Chrome steel 52100 (GCr15) | Material for this item: | Chrome steel 52100 (GCr15) | Material for this item: | Chrome steel 52100 (GCr15) | ||
| Model Number: | MR72ZZ 2X7X3MM | Model Number: | MR72-2RS 2X7X3MM | Model Number: | MR72-2TS 2X7X3MM | ||

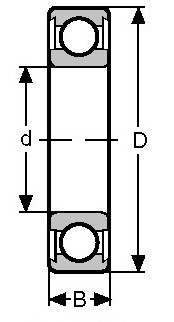

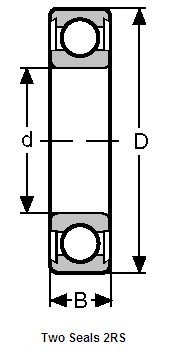

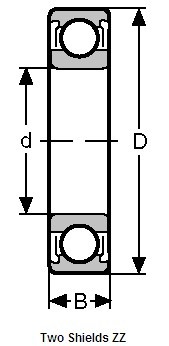

| Bore Diameter(d): | 2.00 mm | Bore Diameter(d): | 2.00 mm | Bore Diameter(d): | 2.00 mm | ||
| Outer Diameter(D): | 7.00 mm | Outer Diameter(D): | 7.00 mm | Outer Diameter(D): | 7.00 mm | ||
| Width(B): | 3.00 mm | Width(B): | 3.00 mm | Width(B): | 3.00 mm | ||
| Min.Raius(rs): | 0.15mm | Min.Raius(rs): | 0.15mm | Min.Raius(rs): | 0.15mm | ||
| Available Precision Rating: | ABEC-1,ABEC-3,ABEC-5,ABEC-7 | Available Precision Rating: | ABEC-1,ABEC-3,ABEC-5,ABEC-7 | Available Precision Rating: | ABEC-1,ABEC-3,ABEC-5,ABEC-7 | ||
| Available Shield/Seal: | SPCC or 1Cr18Ni9 | Available Shield/Seal: | SPCC or 1Cr18Ni9 | Available Shield/Seal: | SPCC or 1Cr18Ni9 | ||
| Available Shields Type: | Pressed steel shield or shield with snap ring | Available Shields Type: | Pressed steel shield or shield with snap ring | Available Shields Type: | Pressed steel shield or shield with snap ring | ||
| Number of Row: | Single Row | Number of Row: | Single Row | Number of Row: | Single Row | ||
| Lubrication Type: | Grease, Oil, Dry | Lubrication Type: | Grease, Oil, Dry | Lubrication Type: | Grease, Oil, Dry | ||
| Grease Lubrication: | Kyodo Yushi Multemp SRL | Grease Lubrication: | Kyodo Yushi Multemp SRL | Grease Lubrication: | Kyodo Yushi Multemp SRL | ||
| Oil Lubrication: | Shell Air Oil#12 | Oil Lubrication: | Shell Air Oil#12 | Oil Lubrication: | Shell Air Oil#12 | ||
| Vibration Level Codes: | V4,V3,V2,V1 | Vibration Level Codes: | V4,V3,V2,V1 | Vibration Level Codes: | V4,V3,V2,V1 | ||
| Radial Play: | CN,C2,C3,C4,C5 | Radial Play: | CN,C2,C3,C4,C5 | Radial Play: | CN,C2,C3,C4,C5 | ||
| Related Bearing Part Number: | SMR72ZZ,MF72ZZ,MR72ZZ/C | Related Bearing Part Number: | SMR72-2RS,MF72-2RS,MR72-2RS/C | Related Bearing Part Number: | SMR72-2TS,MF72-2TS,MR72-2TS/C | ||
| Bearing Other Calling: | miniature Ball Bearing | Bearing Other Calling: | miniature Ball Bearing | Bearing Other Calling: | miniature Ball Bearing | ||
